Name: Desview R6II Lite High Brightness Compact 4K Camera Monitor 5.5 inch Touch Screen with 1600 Nits 4k P30 HDMI HDR Monitoring
Brand: DesView
SKU: DSVIEW-R6II-LITE
Availability: InStock

Desview R6II Lite High Brightness Compact 4K Camera Monitor 5.5 inch Touch Screen with 1600 Nits 4k P30 HDMI HDR Monitoring

Magnetic Hood
Quick Installation and DisassemblyThe monitor and hood can be assembled into one unit. The magnet automatically attaches and fixes the hood.You can unfold it by pulling it upwards, which greatly shortens the installation and disassembly time.

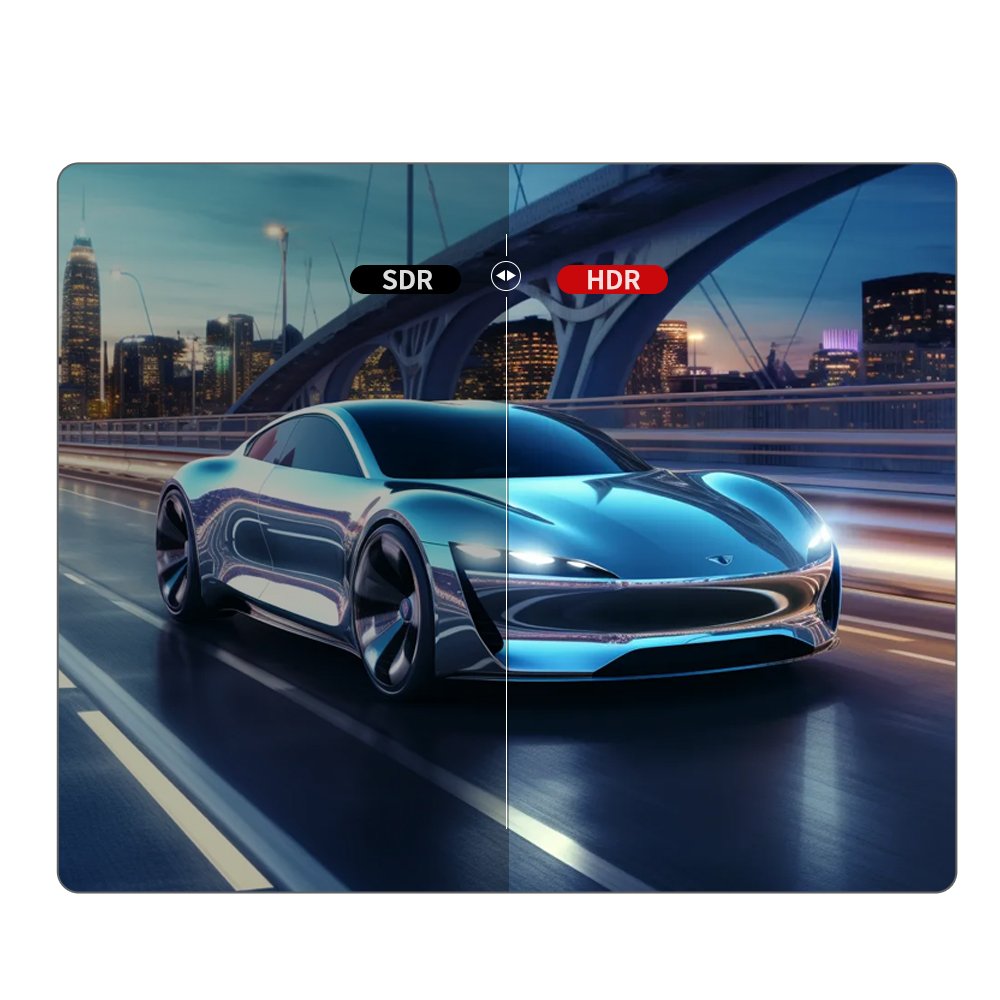

Wider Coverage, Better Experience Full upgrade to 4Kp30 input/output, delivers smoother image quality and a more satisfying viewing experience Realistic View With One Click Switch Supports the latest HDR PQ and HLG curves, richer colors and more natural transitions, making it easy to restore true texture
	High-Brightness, Lead The Industry Adopts an industry-leading 1600 nits High-Brightness screen, it can still bring you a clear and natural monitoring experience even in direct high light

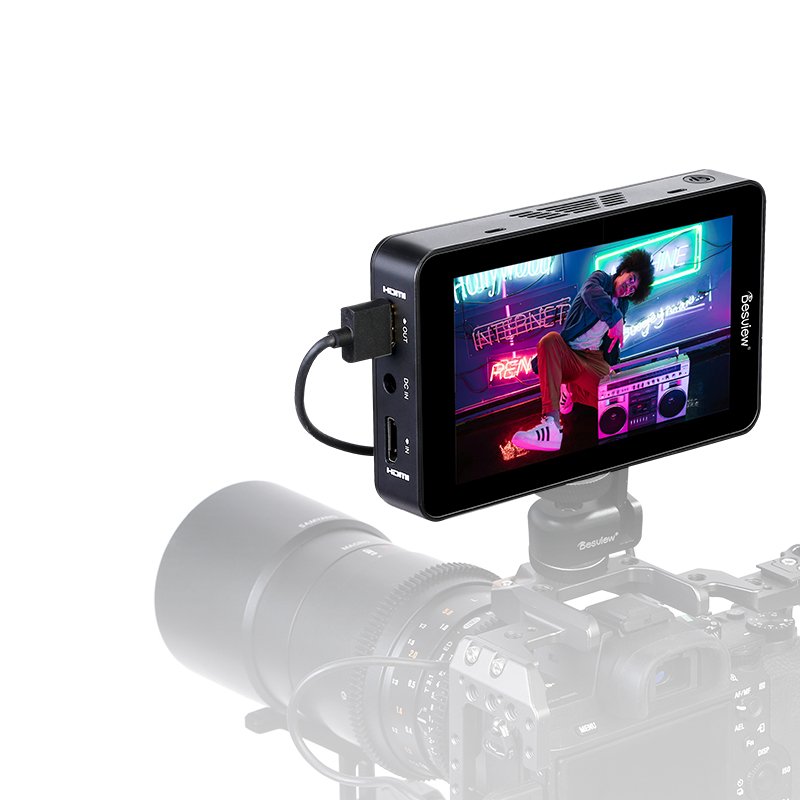

Slight, Yet ExceptionalWith a screen size of 5.5 inches and a weight of only 340g, it easily breaks through shooting scene restrictions, presenting an efficient.
	Film-Grade Color, Stunning Display 99.5% DCI-P3 wide color gamut coverage, professional color accuracy, no color deviation restores true colors; 10-bit color depth, displaying more delicate details, feeling the beauty of true colors

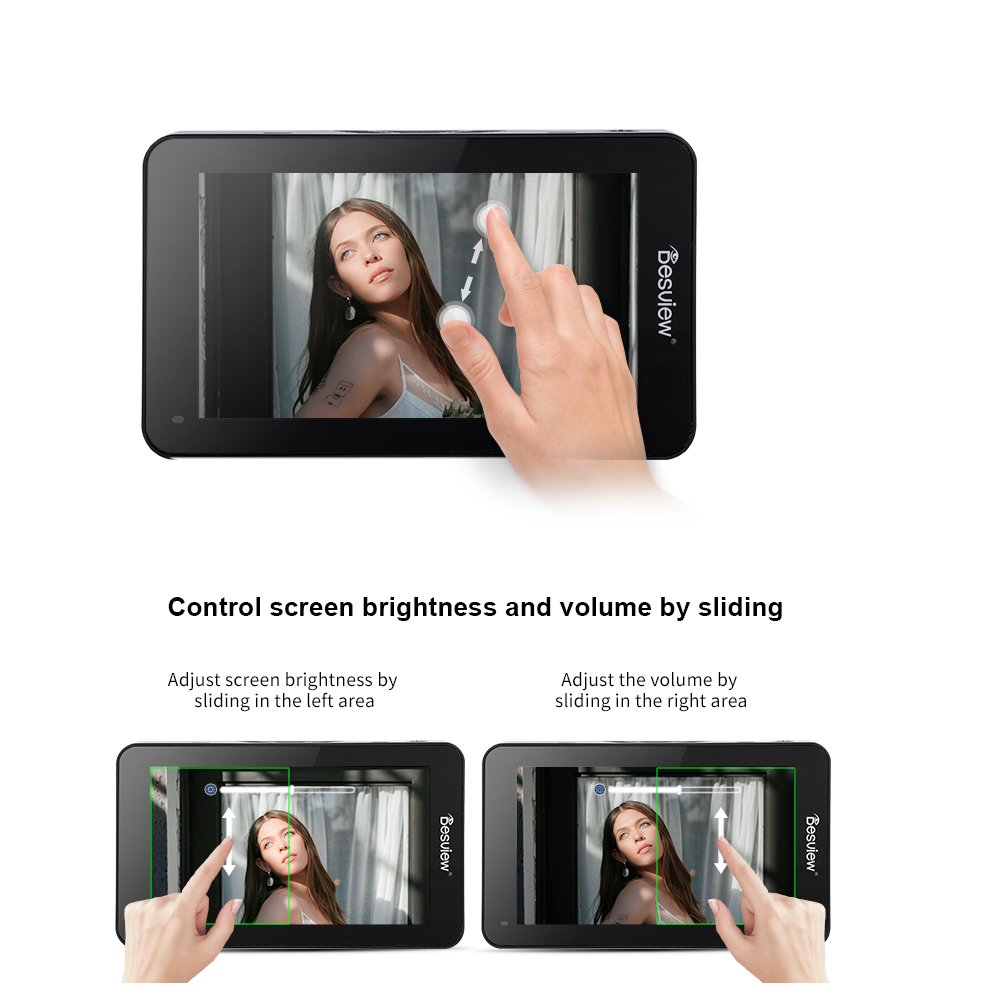

Just Touch Intelligent full touch operation, supports arbitrary zooming with two fingers, can confirm any detail in the picture at any time; supports sliding adjustment of screen brightness and volume, making video creation more convenient

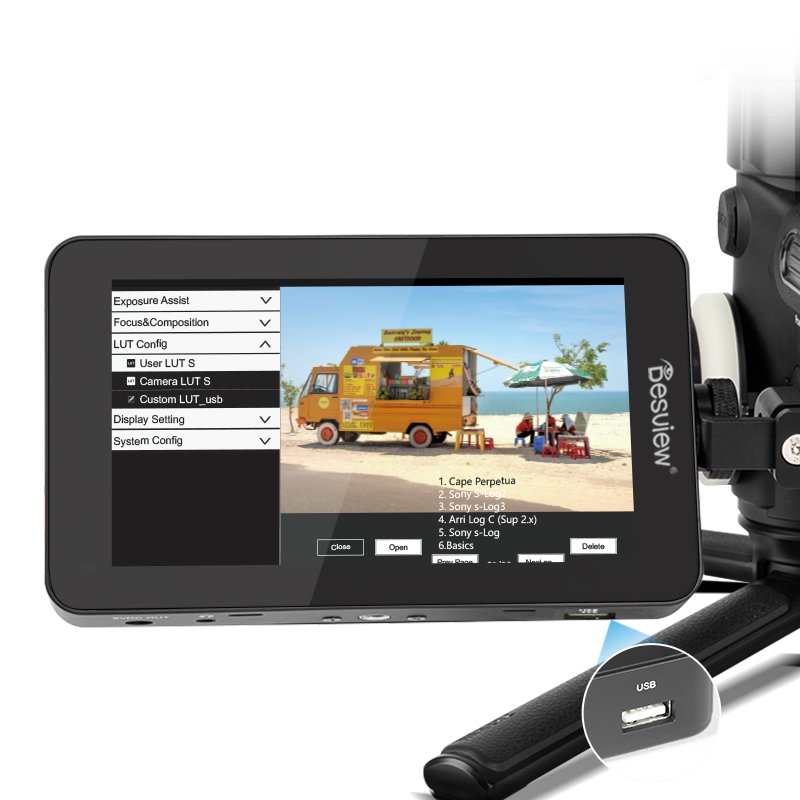

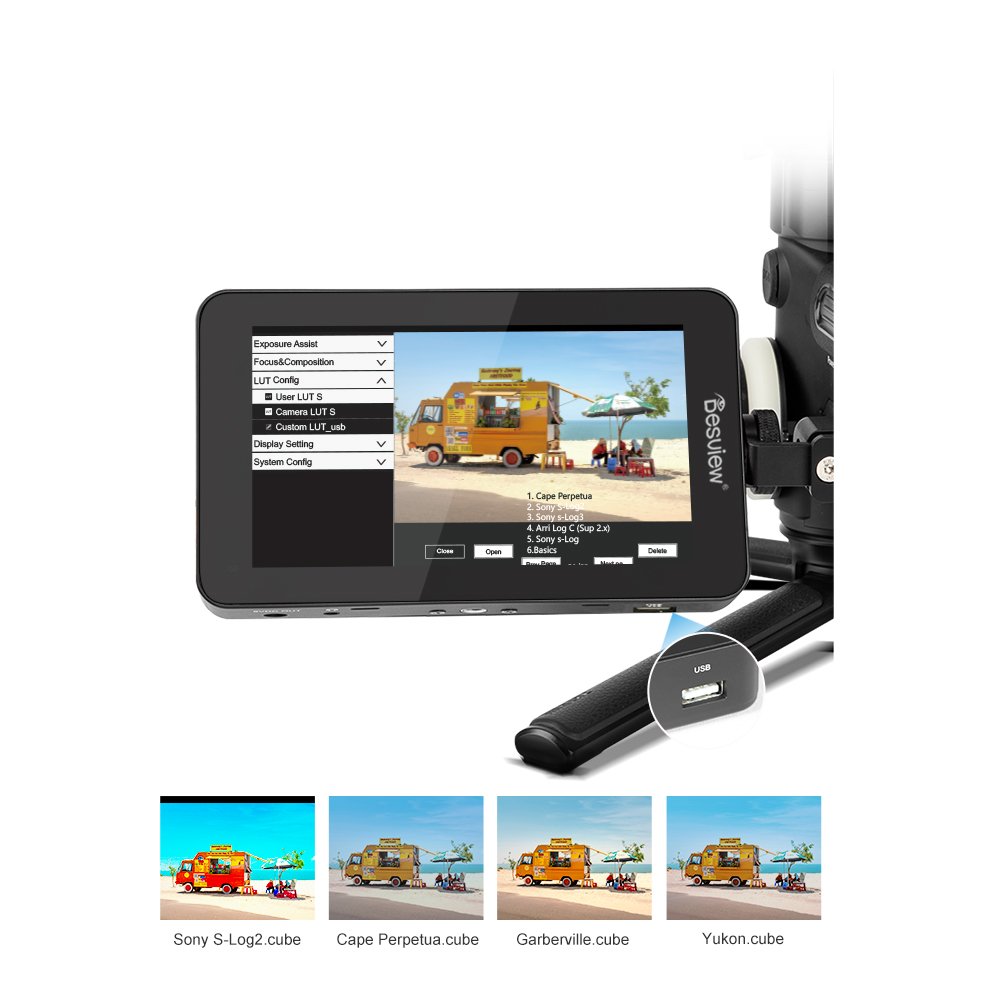

	Infinite Creative Style Not only does it come with multiple brand camera restoration LUTS, but it also supports importing custom LUTS, allowing you to define your exclusive creative style at will.

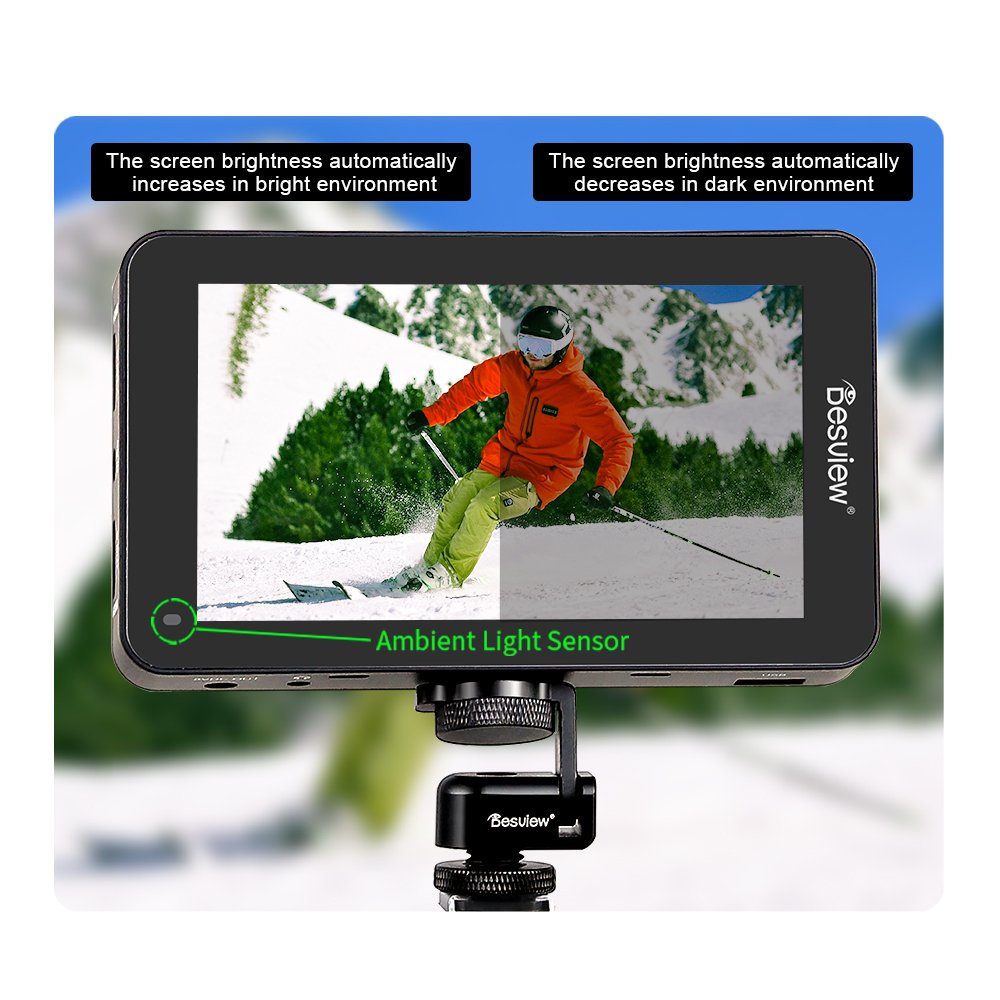

Eco-Friendly Ambient Light Sensor Built-in ambient light sensor, resulting in screen brightness automatically changing under different lighting conditions, while providing a comfortable viewing experience, further saving more energy costs

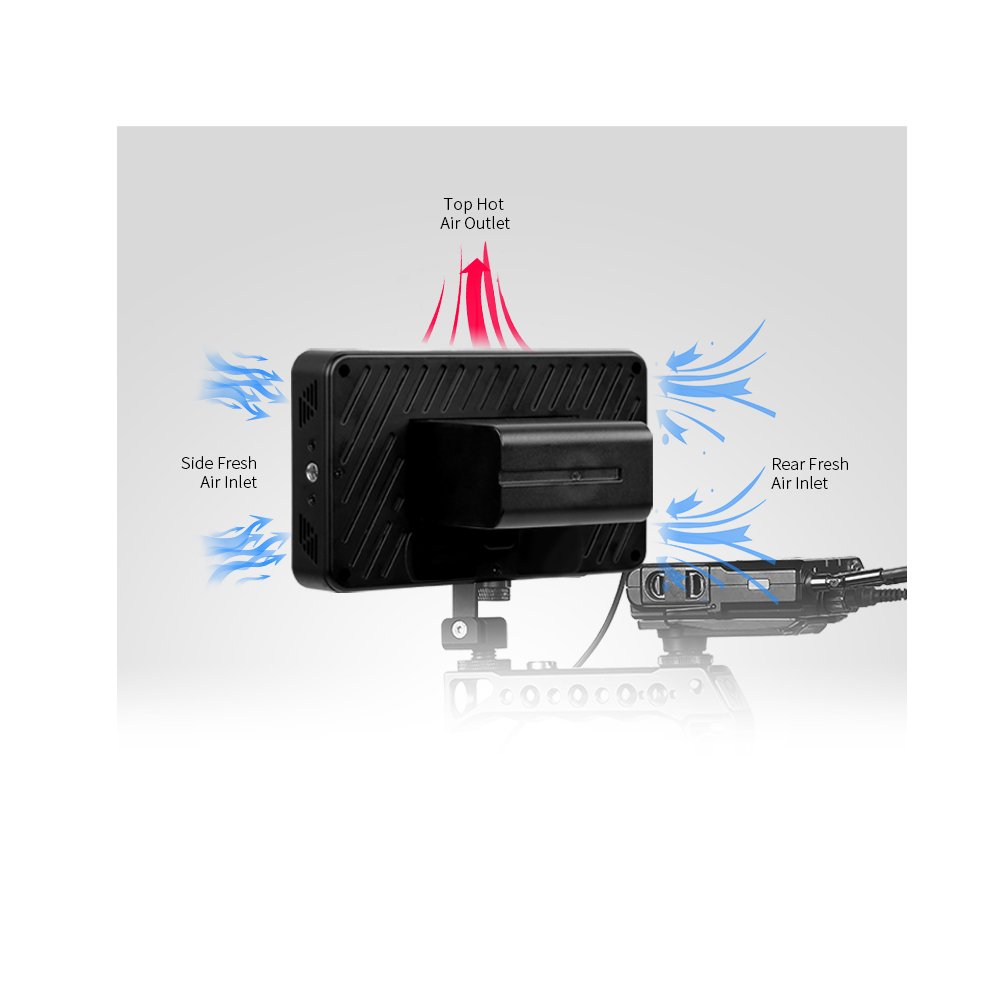

	Powerful Cooling, Subtle Noise Adopts an active fan cooling system, which can be adjusted at low, medium and high speeds, maintaining a quiet state without affecting the on-site shooting work

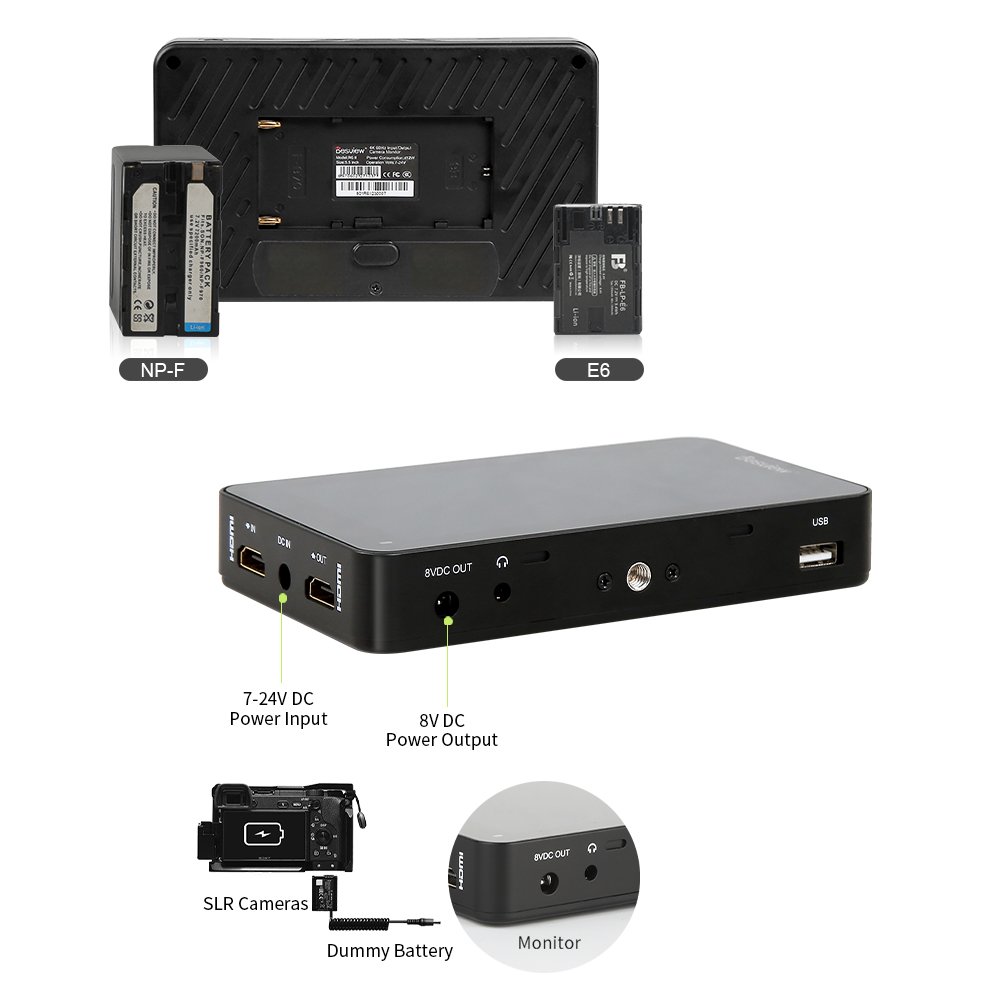

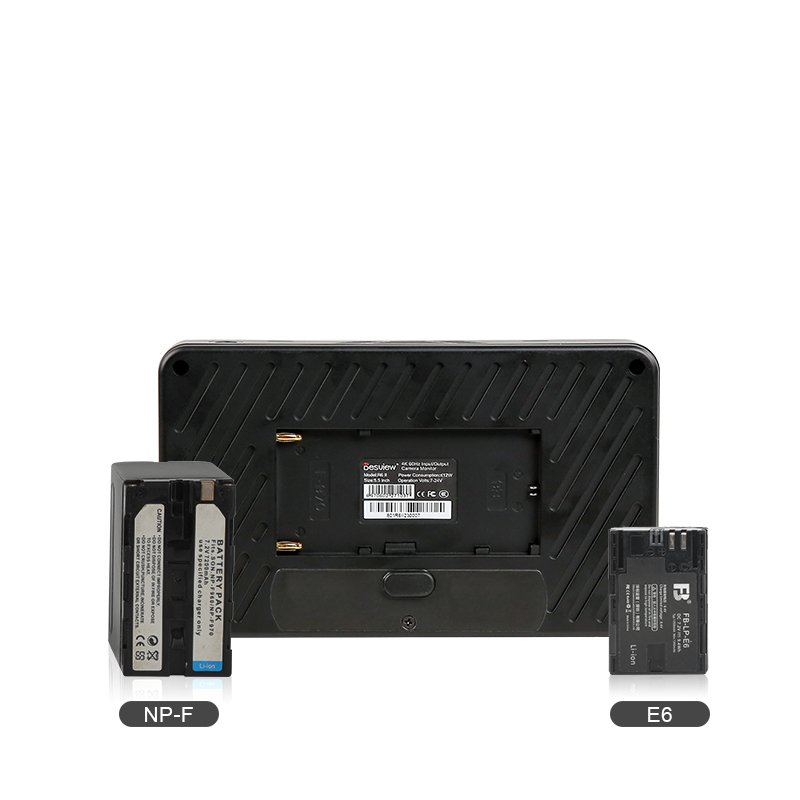

Power AnywhereSupports NF-P, E6 dual power supply and DC output power supply. A humanized multiple power supply system, bidding farewell to poweranxiety from now on DC Power Output Supported The monitor supports DC 7-24V input and 8V DC output

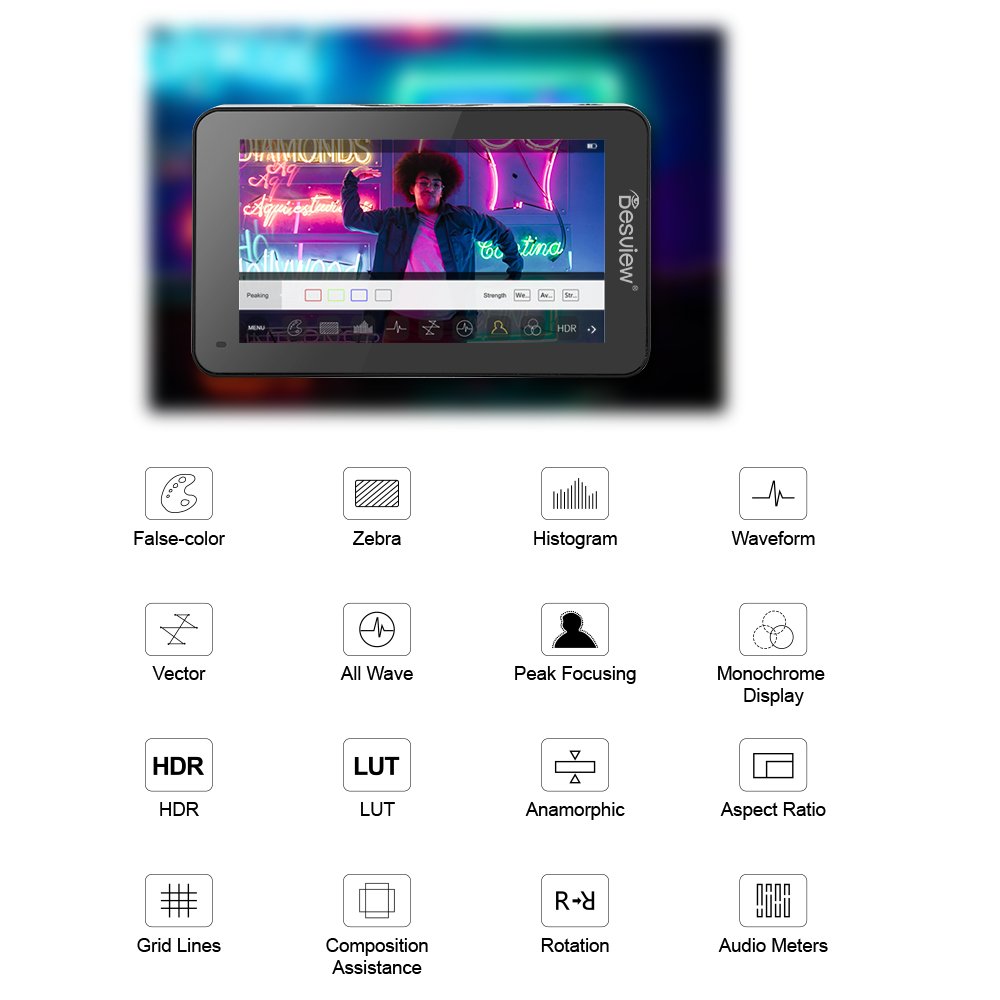

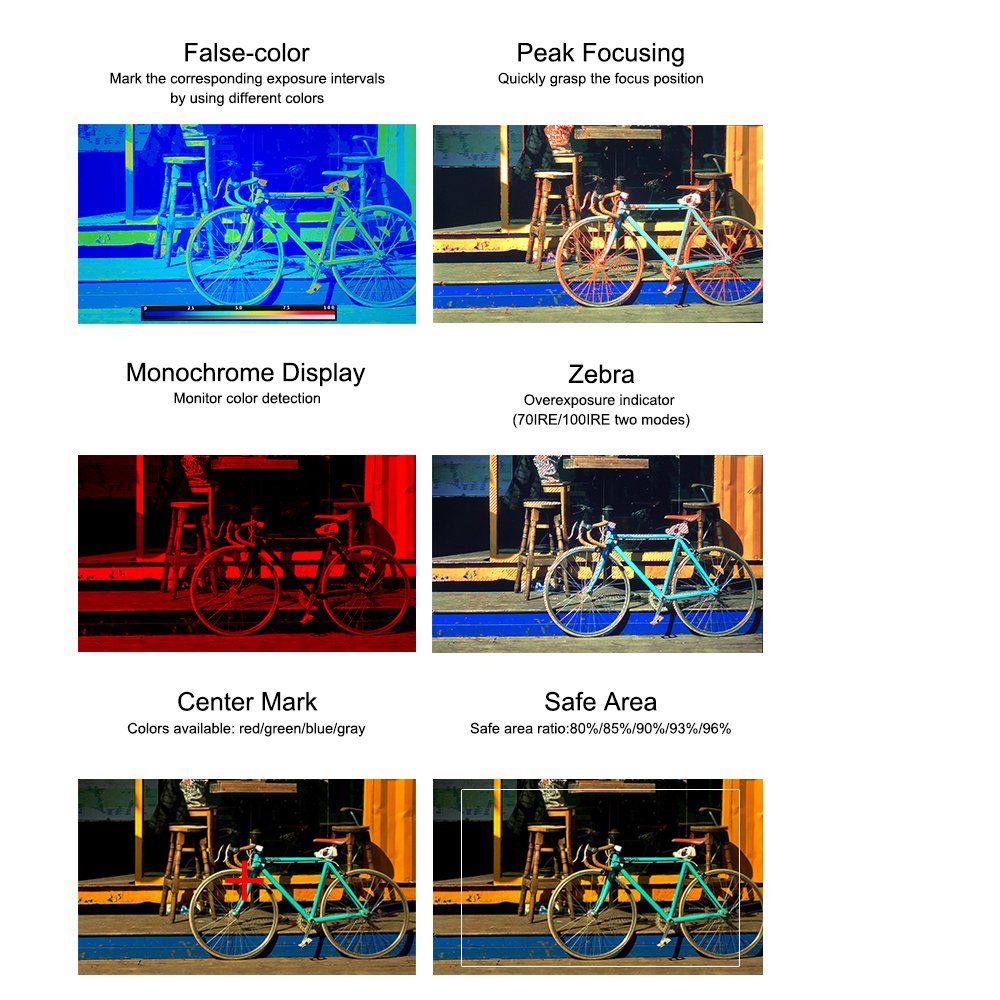

	Complete Monitoring Features Equipped with complete auxiliary shooting functions, including full waveform, color temperature,peak focus, pseudo-color, deformation function, zebra line, still image, and other professional software functions, making shooting simpler

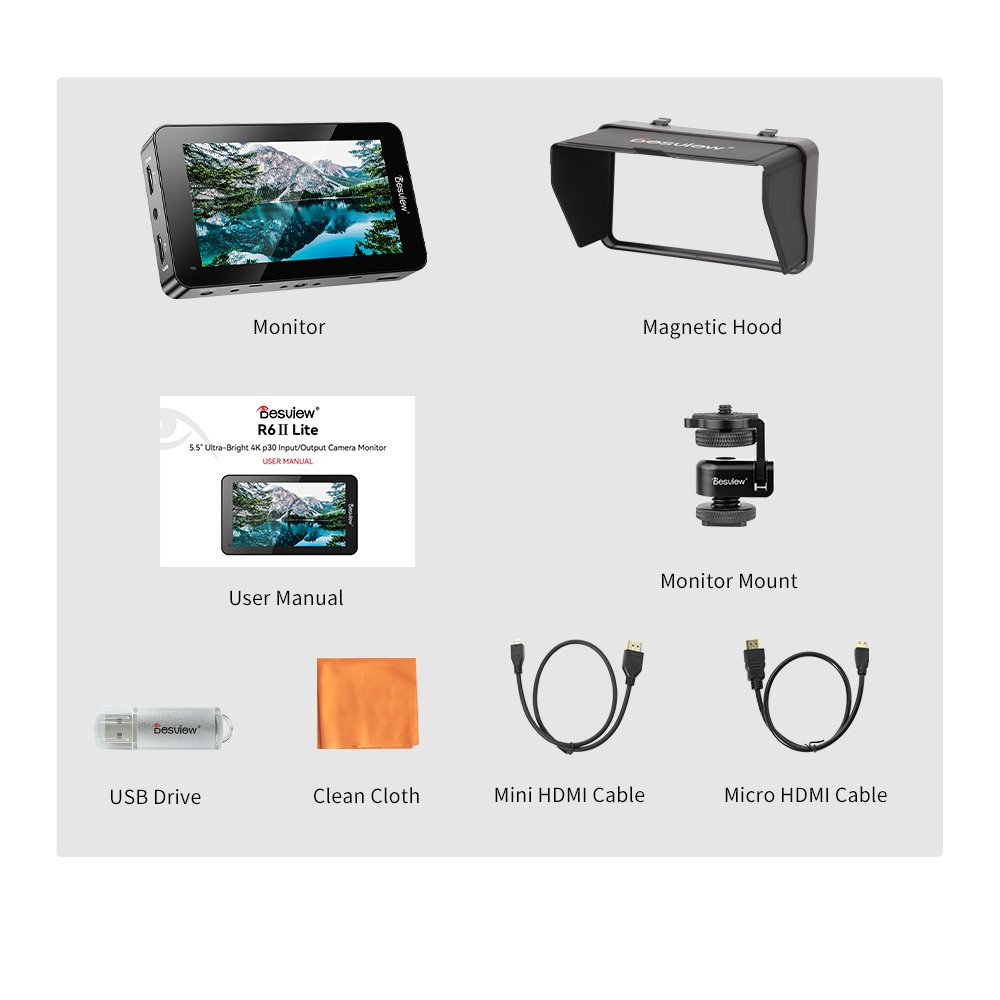

Packing List

Product Specification

Technical	Size: 5.5 inch LCD display screen Net Weight：340g
Parameter	Pixel Density：401PPi Resolution：Full HD1920*1080 Display Ratio：16:9 Brightness：1600 Nits Contrast：1000:1 Viewing Angle：178°（H/V）
Signal Interface	1* HDMI 1.4 Input 13.5mm Stereo Headphone Jack 1 HDMI 1.4 Output USB Drive Interface
HDMI Signal Format	720x480i&720x480p@59.94, 60Hz 720x576i&720x576p@50Hz 1280x720p@50, 59.94, 60Hz 1920x1080i@50, 59.94, 60Hz 1920x1080psf@24, 25, 29.97, 30Hz 1920x1080p@23.93, 24, 25, 29.97,30,50,59.94,60Hz 3840x2160p@24,25,30Hz,[50,60Hz] 4096x2160p@24Hz,25,29.97,30,[50,59.54,60Hz]
Voltage	DC Input Voltage：7-24V DC Output Voltage：8V
Power Consumption	≤12W / ≤24W(8V DC Power Supply Output)

-6%

Desview R6II Lite High Brightness Compact 4K Camera Monitor 5.5 inch Touch Screen with 1600 Nits 4k P30 HDMI HDR Monitoring - Image 1

Desview R6II Lite High Brightness Compact 4K Camera Monitor 5.5 inch Touch Screen with 1600 Nits 4k P30 HDMI HDR Monitoring - Image 2

Click to enlarge

Desview R6II Lite High Brightness Compact 4K Camera Monitor 5.5 inch Touch Screen with 1600 Nits 4k P30 HDMI HDR Monitoring

Desview R6II Lite High Brightness Compact 4K Camera Monitor 5.5 inch Touch Screen with 1600 Nits 4k P30 HDMI HDR Monitoring - Image 3

Desview R6II Lite High Brightness Compact 4K Camera Monitor 5.5 inch Touch Screen with 1600 Nits 4k P30 HDMI HDR Monitoring - Image 4

Desview R6II Lite High Brightness Compact 4K Camera Monitor 5.5 inch Touch Screen with 1600 Nits 4k P30 HDMI HDR Monitoring - Image 5

Desview R6II Lite High Brightness Compact 4K Camera Monitor 5.5 inch Touch Screen with 1600 Nits 4k P30 HDMI HDR Monitoring - Image 6

Desview R6II Lite High Brightness Compact 4K Camera Monitor 5.5 inch Touch Screen with 1600 Nits 4k P30 HDMI HDR Monitoring - Image 7

Desview R6II Lite High Brightness Compact 4K Camera Monitor 5.5 inch Touch Screen with 1600 Nits 4k P30 HDMI HDR Monitoring - Image 8

Desview R6II Lite High Brightness Compact 4K Camera Monitor 5.5 inch Touch Screen with 1600 Nits 4k P30 HDMI HDR Monitoring - Image 9

Desview R6II Lite High Brightness Compact 4K Camera Monitor 5.5 inch Touch Screen with 1600 Nits 4k P30 HDMI HDR Monitoring - Image 10

Desview R6II Lite High Brightness Compact 4K Camera Monitor 5.5 inch Touch Screen with 1600 Nits 4k P30 HDMI HDR Monitoring - Image 11

Desview R6II Lite High Brightness Compact 4K Camera Monitor 5.5 inch Touch Screen with 1600 Nits 4k P30 HDMI HDR Monitoring - Image 12

Desview R6II Lite High Brightness Compact 4K Camera Monitor 5.5 inch Touch Screen with 1600 Nits 4k P30 HDMI HDR Monitoring - Image 13

Desview R6II Lite High Brightness Compact 4K Camera Monitor 5.5 inch Touch Screen with 1600 Nits 4k P30 HDMI HDR Monitoring - Image 14

Desview R6II Lite High Brightness Compact 4K Camera Monitor 5.5 inch Touch Screen with 1600 Nits 4k P30 HDMI HDR Monitoring - Image 15

Desview R6II Lite High Brightness Compact 4K Camera Monitor 5.5 inch Touch Screen with 1600 Nits 4k P30 HDMI HDR Monitoring - Image 16

Desview R6II Lite High Brightness Compact 4K Camera Monitor 5.5 inch Touch Screen with 1600 Nits 4k P30 HDMI HDR Monitoring - Image 17

Desview R6II Lite High Brightness Compact 4K Camera Monitor 5.5 inch Touch Screen with 1600 Nits 4k P30 HDMI HDR Monitoring - Image 18

Desview R6II Lite High Brightness Compact 4K Camera Monitor 5.5 inch Touch Screen with 1600 Nits 4k P30 HDMI HDR Monitoring - Image 19

DesView

Original price was:  689.Current price is:  650.

●5.5-Inch Precise Image Analysis
●1600 Nits High Brightness
●4Kp30 HDMI
●HDR Monitoring
●Custom 3D LUT
●Full HD touchscreen display

Add to compare

Add to wishlist

SKU: DSVIEW-R6II-LITE Category: Accessories

Description
Additional information

Description

Wider Coverage, Better Experience Full upgrade to 4Kp30 input/output, delivers smoother image quality and a more satisfying viewing experience Realistic View With One Click Switch Supports the latest HDR PQ and HLG curves, richer colors and more natural transitions, making it easy to restore true texture
	High-Brightness, Lead The Industry Adopts an industry-leading 1600 nits High-Brightness screen, it can still bring you a clear and natural monitoring experience even in direct high light
Slight, Yet ExceptionalWith a screen size of 5.5 inches and a weight of only 340g, it easily breaks through shooting scene restrictions, presenting an efficient.
	Film-Grade Color, Stunning Display 99.5% DCI-P3 wide color gamut coverage, professional color accuracy, no color deviation restores true colors; 10-bit color depth, displaying more delicate details, feeling the beauty of true colors
Just Touch Intelligent full touch operation, supports arbitrary zooming with two fingers, can confirm any detail in the picture at any time; supports sliding adjustment of screen brightness and volume, making video creation more convenient
	Infinite Creative Style Not only does it come with multiple brand camera restoration LUTS, but it also supports importing custom LUTS, allowing you to define your exclusive creative style at will.
Eco-Friendly Ambient Light Sensor Built-in ambient light sensor, resulting in screen brightness automatically changing under different lighting conditions, while providing a comfortable viewing experience, further saving more energy costs
	Powerful Cooling, Subtle Noise Adopts an active fan cooling system, which can be adjusted at low, medium and high speeds, maintaining a quiet state without affecting the on-site shooting work
Power AnywhereSupports NF-P, E6 dual power supply and DC output power supply. A humanized multiple power supply system, bidding farewell to poweranxiety from now on DC Power Output Supported The monitor supports DC 7-24V input and 8V DC output
	Complete Monitoring Features Equipped with complete auxiliary shooting functions, including full waveform, color temperature,peak focus, pseudo-color, deformation function, zebra line, still image, and other professional software functions, making shooting simpler

Technical	Size: 5.5 inch LCD display screen Net Weight：340g
Parameter	Pixel Density：401PPi Resolution：Full HD1920*1080 Display Ratio：16:9 Brightness：1600 Nits Contrast：1000:1 Viewing Angle：178°（H/V）
Signal Interface	1* HDMI 1.4 Input 13.5mm Stereo Headphone Jack 1 HDMI 1.4 Output USB Drive Interface
HDMI Signal Format	720x480i&720x480p@59.94, 60Hz 720x576i&720x576p@50Hz 1280x720p@50, 59.94, 60Hz 1920x1080i@50, 59.94, 60Hz 1920x1080psf@24, 25, 29.97, 30Hz 1920x1080p@23.93, 24, 25, 29.97,30,50,59.94,60Hz 3840x2160p@24,25,30Hz,[50,60Hz] 4096x2160p@24Hz,25,29.97,30,[50,59.54,60Hz]
Voltage	DC Input Voltage：7-24V DC Output Voltage：8V
Power Consumption	≤12W / ≤24W(8V DC Power Supply Output)
